Split Core Current Sensor XH-SCT-T10(B)

image info

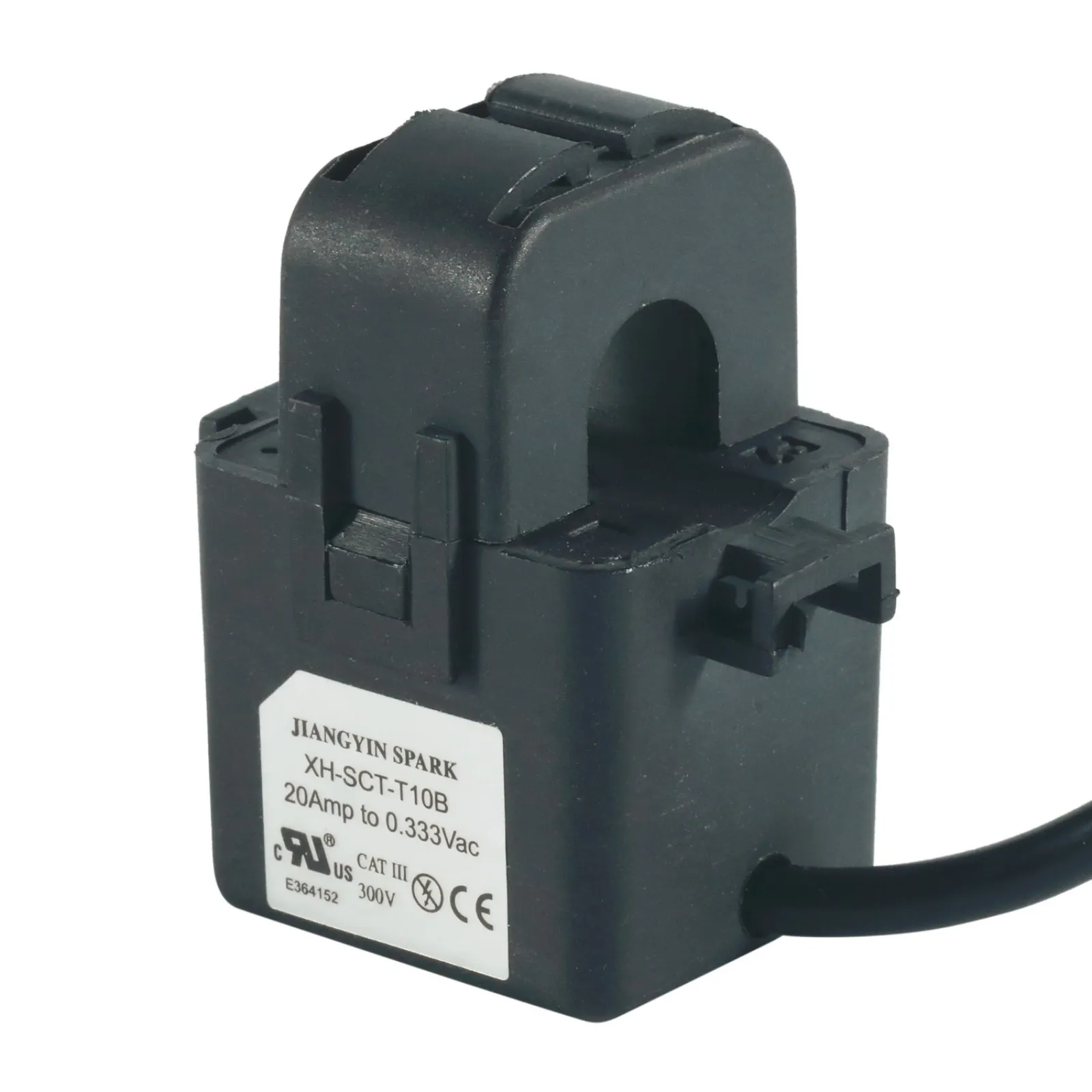

Split-Core AC Current Sensor XH- SCT-T10B

φ10mm Opening With 5 To 80 Amp Rating

Description:

Jiangyin Spark XH-SCT-T10 Series split-core current senses AC current from 5 to 80 Amps passing through the center conductor.Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.

Features:

  • Small size, low cost
  • High secondary turns
  • Secure locking hinge

Specifications:

  • Maximum continuous primary current 80 A AC
  • Current Ratio: 500:1,1000:1,2000:1,2500:1,3000: 1
  • Accuracy: ± 1% from 5% to 120% of rated current
  • Work Voltage: 600Vac
  • Maximum Primary Voltage: 5000Vac(Insulated Conductor)
  • Phase angle: Less than 2 degrees at 50% of rated current
  • Frequency Range: 50 Hz to 400 Hz
  • Operating Temperature: -15C to 60C.
  • Leads: 30cm with Terminal connector
  • CE UL recognized, and RoHS compliant
  • Output and leads can be customized

Applications:

  • Portable instruments
  • Sub-metering
  • Monitor motor loads
