Solid core current transformer XH-BCT-0500

Solid core current transformer XH-BCT-0500 ,0.5 inches hole ,100A/40mA ,UL 2808

image info

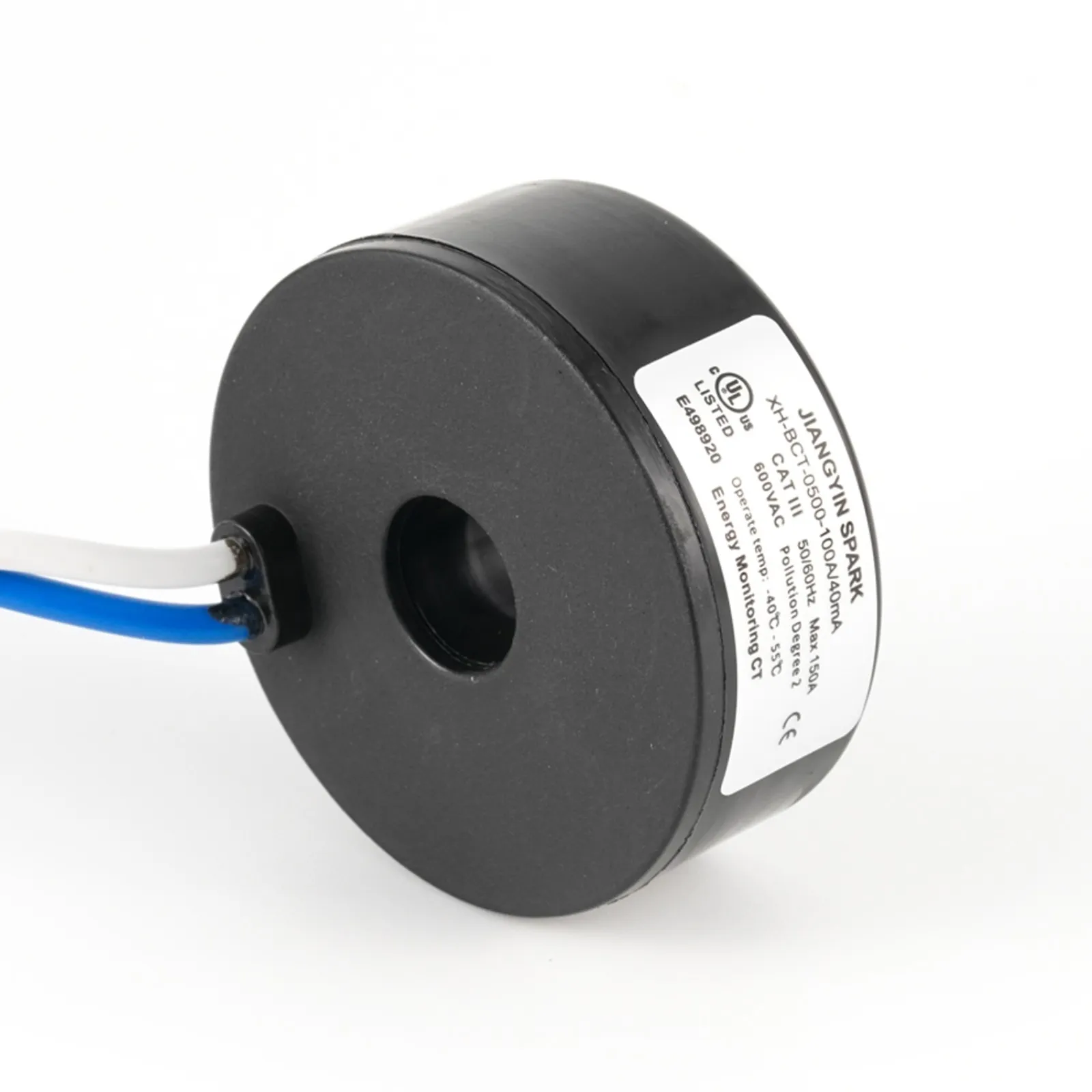

Jiangyin Spark XH-BCT-0500 Solid Core Current Transformer design for better accuracy for 0.333V output Solid core CTs are more accurately , small in size,If mA sendary output ,accuracy can be 0.1%

Specifications:

  1. Rated input current from 5A to 600A
  2. 0.333V AC or other mA ,mV output at rated current
  3. Accuracy ±0.5% or 0.1% 4.Insulation Voltage:5400V, CATIII 600V or CATIV 250V 5.Accuracy at 10% to 130% of rated current 6.Rated Frequency:50HZ or 60HZ;
    7.UL2808 ,RoHS Compliant 8.Operating Temperature:-40ºC to +55ºC 9.Flame resistance:UL94-V0; 10.Tensile force value: 9.08 kg(89N) for 1 minutes

image info

ModelI.D.Rated AmpsOutputOutside DiameterHeight
KH-BCT-03000.39 in.
0.76 cm		1A to 50AmA or 0-5V output1.70 in.
4.32 cm		0.75 in.
1.91 cm
KH-BCT-05000.50 in.
1.27 cm		5A to 150AmA or 0-5V output1.90 in.
4.83 cm		0.75 in.
1.91 cm
KH-BCT-07500.75 in.
1.91 cm		10A to 250AmA or 0-5V output2.10 in.
5.33 cm		0.75 in.
1.91 cm
KH-BCT-10001.00 in.
2.54 cm		50A to 400AmA or 0-5V output2.40 in.
6.10 cm		0.80 in.
2.03 cm
KH-BCT-12501.25 in.
3.18 cm		50A to 600AmA or 0-5V output2.70 in.
6.86 cm		0.80 in.
2.03 cm
