Slim clip on current transformer

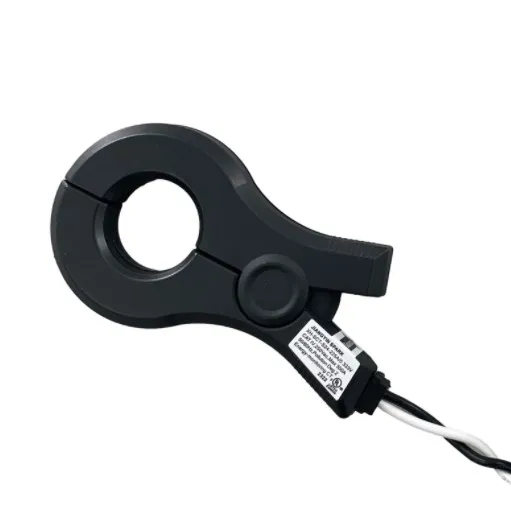

Slim clip on current transformer XH-SCT-S24
Jiangyin Spark XH-SCT-S24 Slim clip on current transformer ,clamp on type , senses AC current from 50 to 300 Amps passing through the center conductor.Slim current transformer are Clamp and split core design ,can make installation with single hand .designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.
Smart Grid Application Features Energy storage solutions,PV Inverters,PV monitoring In-Factory Display In-Home Display Inverters for Solar & Wind Turbine Systems Power Measurement Device For PLC
| Model | Input current (A) | Max current (A) | Output |
|---|---|---|---|
| XH-SCT-S24 | 0.2-300 Aac | 320 Aac | mA / 0.333 Vac / 0-3 Vac |
| XH-SCT-S24 | UNITS | |
|---|---|---|
| ELECTRICAL SPECIFICATION | ||
| Accuracy (1% - 100% of rated current) | ±0.5 | % |
| CT Phase Angle (5% - 120% of rated current) | 0.5 (Ultracrystalline) / 1.5 ± 0.5 (Silicon iron) | Degrees |
| Nominal Line Frequency | 60 / 50 | Hz |
| Current Rating | 0.2 to 300 | A |
| Output Voltage | 0 - 333 | mVac |
| Overvoltage | AC 3000V / 0.3mA / 60S (50HZ/60HZ) | Vac |
| Maximum Continuous Amps | 300 | A |

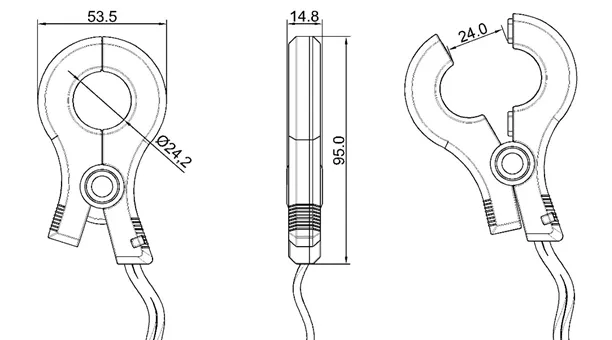

| MECHANICAL | ||
| Type | Split core, clamp design | |
| Average Window Diameter | 24 | mm |
| Lead Wire - Type | Twisted pair | MTW, UL105 |
| Lead Wire - Length | 17 / 5.2 | ft/m |
| Lead Wire - Gauge | 20 | AWG |
| Material | Polycarbonate | |
| Weight | 190 | g |
| ENVIRONMENTAL | ||
| Operating Temperature Range | -40 to 60 | °C |
| Operating Humidity | 5% to 90% relative humidity | |
| IP Rating | 30 (NEMA 1) |
