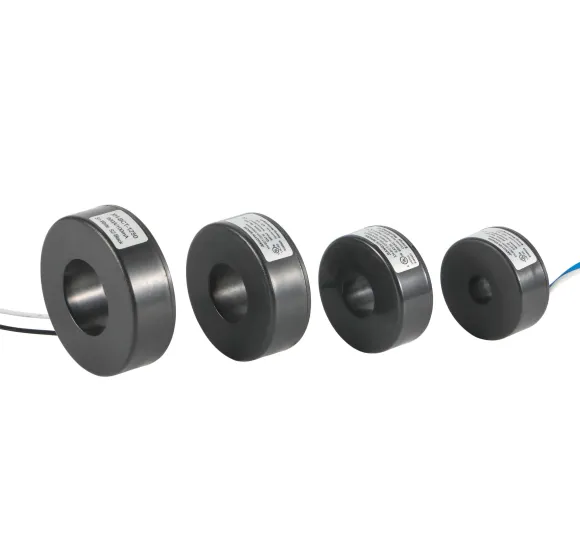

Revenue grade Solid core Current Transformer

image info

Revenue Grade Production CT

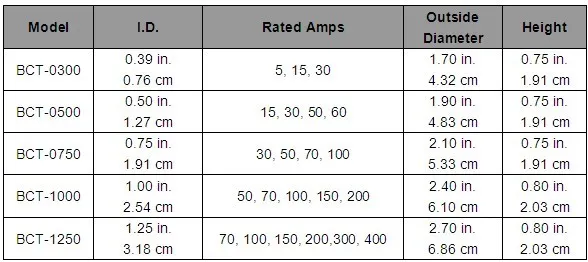

Jiangyin Spark XH-BCT Series of Revenue grade production CT is Toroidal solid-core current transformers , more compact and accurate. You must disconnect the measured circuit to install solid core CTs, so they are better suited for new wiring or permanent installation..Solid core CTs are more accurately,small in size, and very cheap .If mA sendary output ,accuracy can be 0.1% ,5 models for your choice

  • Rated input current from 5A to 400A
  • 0.333V AC output at rated current
  • Accuracy ±1%
  • Epoxy encapsulated housing
  • Accuracy at 10% to 130% of rated current
  • 1.05 meter twisted-pair lead
  • RoHS Compliant
  • Custom output and other parameters are available
