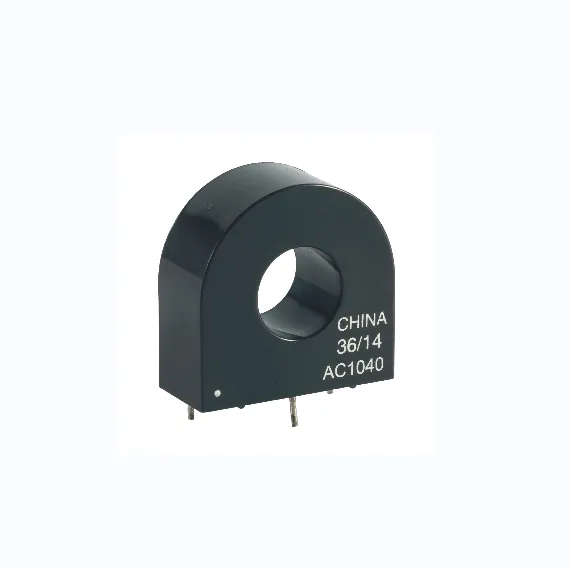

PCB Current Transformer

image info

Features

  • Low cost. low profile for PCB mounting
  • High accuracy,wide linear range,low phase shift error
  • Burn-resistant case and filler

Specifications

  • Accuracy Class: 0.1
  • Dielectric strength:2500V/min
  • Dielectric Resistance: 1000M Ohms @ 500 Vdc
  • Working frequency 50-400Hz
  • Ambient temperature:-25℃~+85℃
  • RoHS Compliant
  • CE-approved
  • Customer specifications are available

Application

electronic energy meter, power transducer, precision power meter and other power and energy monitoring devices over current protection circuit of motor and other electrical appliances
